Heat Shrinkable Anti Tracking Straight Boot

Enquire Now

Features

  • Designed for medium voltage applications up to 36 KV
  • Shaped components to meet a variety of configuration requriements
  • Continuous operation temperature: -55° C to 120° C
  • Used in proctecting cable and up to 36 KV against flashover or surges induce during working life in switch gear in and transformer boxes.

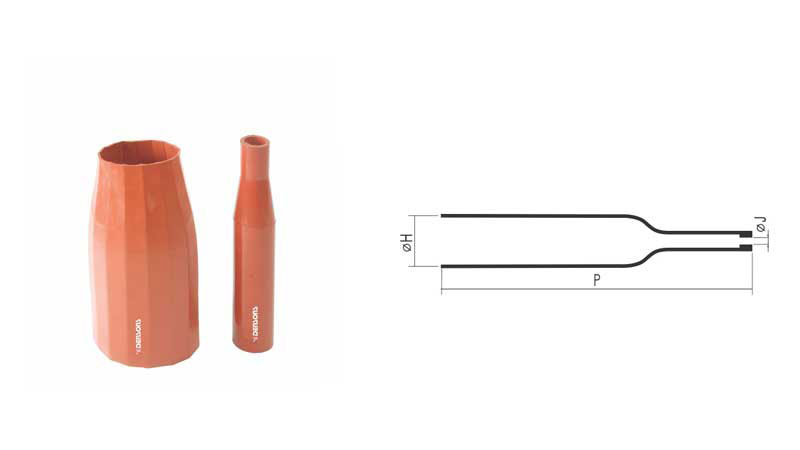

Heat Shrinkable Anti Tracking Straight Boot

Technical Data

Property Requirements Test Method
Tensile Strength 8N/mm2 (min.) ASTMD 412, ESI09-13
Elongation 200% (min) ASTMD 412, ESI09-13
Heat Aging
(500 hrs. at 1200 C)
Tensile Strength 7N/mm2 (min.) ASTMD 412
Elongation 200% (min.) ASTMD 412
Cold Temperature
Flex (-400 C) 		No cracking ASTMD 2671
Electrical
Dielectric Strength
 10 kV/mm (min.) ASTMD 149, IEC 243
Volume Resistivity 1 x 1012 ohm-cm (min.) ASTMD 257
Track Resistance Non-Tracking ASTMD 2303
Chemical Resistance
Tensile Strength 7N/mm2 (min.) ASTMD 412
Elongation 200% (min.) ASTMD 412

Ordering Information

Code Expanded Recovered Recovered P±10%
Ø H (max.) Ø J(min.) Ø H (max.) Ø J(min.)
DSB - 1 80.0 34.0 32.0 19.0 225.0 Enquire Now
DSB - 2 80.0 58.0 32.0 29.0 225.0 Enquire Now
