Heat Shrinkable Anti Tracking Rain Sheds

Enquire Now

Features

  • Designed for medium voltage applications up to 36 KV
  • Shaped components to meet a variety of configuration requriements
  • Continuous operation temperature: -55° C to 120° C
  • High creep resistance, anti-tracking properties

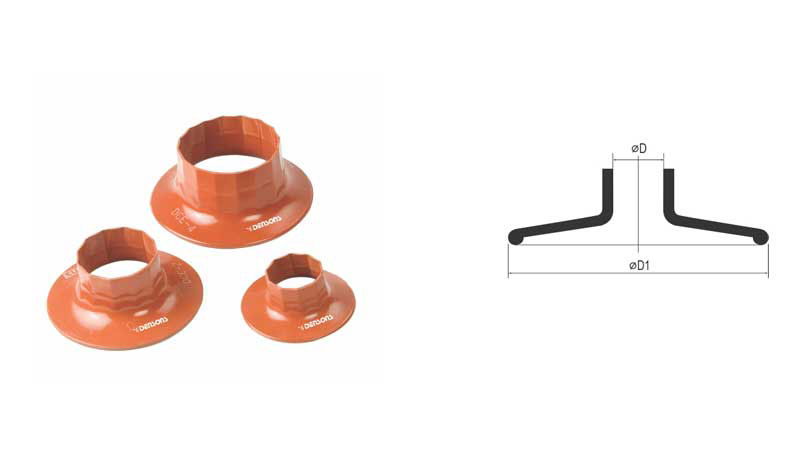

Heat Shrinkable Anti Tracking Rain Sheds

Technical Data

Property Requirements Test Method
Tensile Strength 8N/mm2 (min.) ASTM D412, ESI 09-13
Elongation 200% (min) ASTM D412, ESI 09-13
Heat Aging
(500 hrs. at 1200 C)

Tensile Strength 7N/mm2 (min.) ASTM D412
Elongation 200% (min.) ASTM D412
Cold Temperature
Flex (-400 C)
No cracking ASTM D2671
Electrical
Dielectric Strength 10 kV/mm (min.) ASTM D149, IEC 243
Volume Resistivity 1 x 1012 ohm-cm (min.) ASTM D257
Track Resistance Non-Tracking ASTM D2303
Chemical Resistance
Tensile Strength 7N/mm2 (min.) ASTM D412
Elongation 200% (min.) ASTM D412

Dimension Chart

Size No. Ø D exp.(min.) Ø D rec.(max.) D1
DCE - 0 32 10 65 Enquire Now
DCE - 1 35 15 89 Enquire Now
DCE - 2 52 21 122 Enquire Now
DCE - 3 65 28 136 Enquire Now
DCE - 4 75 28 136 Enquire Now
