Features
- Breakout can be used to cable terminations up to 36 KV
- The electrically semi-conductive breakout provide effective conductive screen and sealing protection to the cable termination
- Minimum fully recovered temperature:130oC
Enquire Now
Technical Data
| Property |
Requirements |
Test Method |
| Tensile strength |
8 N/mm (min.) |
ASTM D 638 |
| Elongation at break |
200% (min.) |
ASTM D 638 |
| Water absorption |
0.5% (max.) |
ISO 62 |
| Volume resistance |
104 Ω cm (min.) |
IEC 93 |
| Longitudinal change |
+-25 % |
ESI-09-13 |

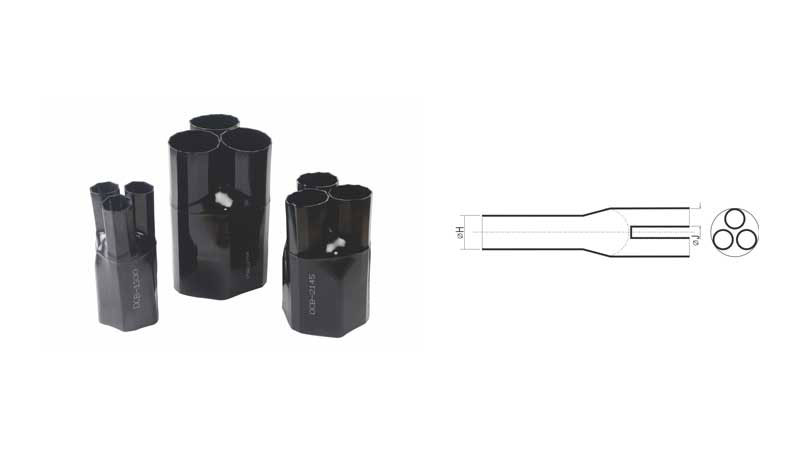

Dimension Chart for 3 Semi Conductive Breakout (Black)
| Code |
Expanded |
Recovered |
| ø H min. |
ø J min. |
ø H max. |
ø J max |
| DSCB - 0820 |
60 |
27 |
20 |
8 |
| DSCB - 1330 |
75 |
32 |
30 |
13 |
| DSCB - 2145 |
110 |
55 |
45 |
21 |
| DSCB - 2755 |
135 |
64 |
55 |
27 |
