Elbow Connectors

Screened, Separable Connection System (Elbow Type) 24 kV 250 A



Enquire Now

Features

  • Safe to touch.
  • Capacitive test point.
  • Faster installation.
  • In-built stress control offering high stress control properties.
  • Minimum jointer expertise.
  • Easy application.
  • Unlimited shelf-life.
  • Outstanding mechanical, chemical & electrical properties.
  • Non-corrosive and UV resistant.

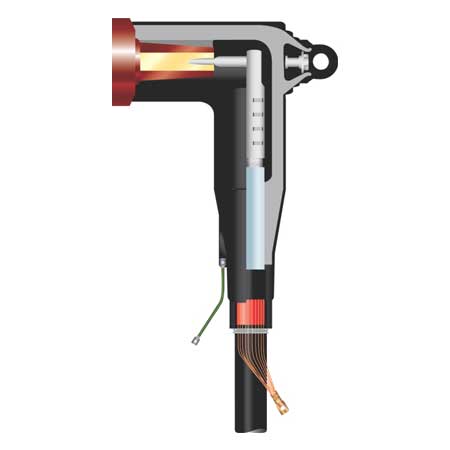

Screened, Separable Connection System (Elbow Type) 24 kV 250 A

Dimension Chart for Screened, Separable Connection System 250 A upto 24 kV

DECR-24/250A Technical
Perameter
Screened, Separable Connection
System 250 A upto 24 kV
Power Function Rated Voltage 15kV 24kV
  Rated Current 250A 250A
  Frequency Withstand Voltage 39kV/5min 54kV/5min
  Partial Discharge 15kV < 10pC 20kV < 10pC
  Impulse Voltage (+ 10 time) 95kV 125kV
  Overcurrent (max. = 8h) 300A 300A
  Screen Resistance < 5000 Ω < 5000 Ω
  Application Cable (x-section) 35-120mm2 35-120mm2
