Elbow Connectors

DSCS Screened, Separable Connection System 24 kV 630 A

Enquire Now

The Elbow Connectors 25 kV-250, 400 & 630 amps Shielded Connector is shielded and insulated termination, rated 250, 400 & 630 amps upto 24 kV, conected with underground cable ranging from 25 to 400mm2 (conductor cross section). Meets requirements of DIN 47636 standard.

Elbow Connectors 24 kV - 250, 400 & 630 amps Shielded Connectors are molded using high quality peroxide-cured EPDM insulation. It is used to terminate high quality voltage underground cable to switchgear, RMU and 250, 400 & 630 amps junctions equipped with deadbreak bushing. Shielded Fore-Connectors are designed for usage on solid dielectric cable (XLPE or EPR). In order to provide more cable branch circuits, the shielded fore connectors can be connected with the 24 kV - 250, 400 & 630 Shielded type Sub- Connector.


  • Safe to touch.
  • Capacitive test point.
  • Faster installation.
  • Non-corrosive and UV resistant
  • In-built stress control offering high stress control properties
  • Outstanding mechanical, chemical & electrical properties.
  • Unlimited shelf-life.
  • In compliance with IEC-60502-4.

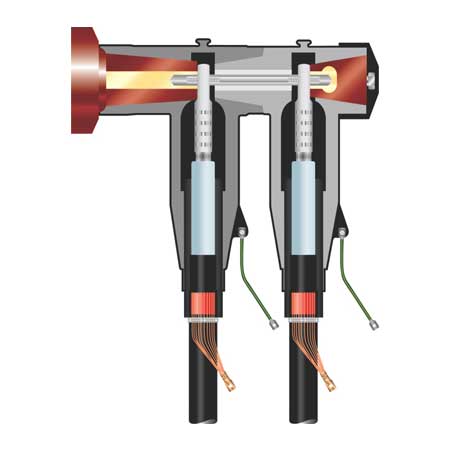

DSCS Screened, Separable Connection System 24 kV 630 A

Dimension Chart for Screened, separable connection system 24 kV 630 A

DSCS Technical
T Connector 36kV 630A
  Items Parameter
  Cable 12/20kV 18/30kV
  System Voltage 24kV 24kV
  Rated Current 630A 630A
  Partial Discharge 21kV/ ≤10pC 31kV/ ≤10pC
  A.C. Withstand Test 54kV/5min. 85.5kV/5min.

Selection Table for Screened separable connection system 24kV 630A with DIN compression lugs

24 kV
Reference Number
Conductor Material
25 17.0 20.0mm DSCS-6201 DSCS-6212 Enquire Now
35 17.0 20.0mm DSCS-6202 DSCS-6213 Enquire Now
50 20.0 23.1mm DSCS-6203 DSCS-6214 Enquire Now
70 20.0 23.1mm DSCS-6204 DSCS-6215 Enquire Now
95 23.1 26.1mm DSCS-6205 DSCS-6216 Enquire Now
120 23.1 26.1mm DSCS-6206 DSCS-6217 Enquire Now
150 25.8 30.8mm DSCS-6207 DSCS-6218 Enquire Now
185 25.8 30.8mm DSCS-6208 DSCS-6219 Enquire Now
240 30.4 32.3mm DSCS-6209 DSCS-6220 Enquire Now
300 32.0 35.4mm DSCS-6210 DSCS-6221 Enquire Now
400 32.0 35.4mm DSCS-6211 DSCS-6222 Enquire Now
