Terminations upto 36 kV For 3 Core XLPE/EPR Insulated Cable

XSO/E-2236

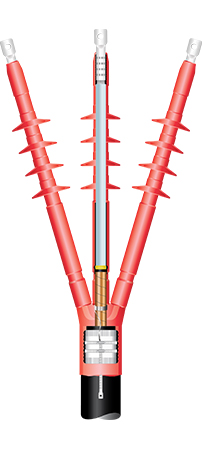

DENSONS HEAT SHRINKABLE TERMINATIONS UPTO 36 kV For 3 Core XLPE/EPR Insulated Cable

Enquire Now

Features

  • All key inputs are produced in-house.
  • Continuous operation temperature-55oC to 120oC.
  • Corrosion resistant and unlimited shelf life.
  • In compliance with IEC-60502-4 / IS-13573.
  • Electrolytic grade connectors.
log

In conformance with IEEE-48,
VDE 0278 & IS: 13573.

Specifications

Test Item of Heat Shrinkable Termination as per IEC-60502-4 / IS:13573

Testing Items U o/U 6.35/11 kV 12.7/22 kV 19/33 kV
A.C. withstand test 29kV, 5min, no flashover 58kV, 5min, no flashover 86kV, 5min, no flashover
Partial discharge test 11kV < 10pc (Max.) 22kV < 10pc (Max.) 33kV < 10pc (Max.)
Thermal Cycles (63 cycles) under 95-100oC 16kV under 95-100oC 32kV under 95-100o C 48kV
Impulse voltage test 75kV no flashover 125kV no flashover 170kV no flashover
A.C. with stand test 16kV, 15 min, no flashover 32kV, 15 min, no flashover 48kV, 15 min, no flashover
Humidity test (Indoor) No flashover, tracking erosion or mechanical damage occured at 300hrs, 8kV No flashover, tracking erosion or mechanical damage occured at 300hrs, 16kV No flashover, tracking erosion or mechanical damage occured at 300hrs, 24kV
Salt Fog test (Outdoor) No flashover, tracking erosion or mechanical damage occured at 1000hrs, 8kV no flashover, tracking No flashover, tracking erosion or mechanical damage occured at 1000hrs, 16kV no flashover, tracking No flashover, tracking erosion or mechanical damage occured at 1000hrs, 24kV no flashover, tracking

Ordering Information

CABLE SIZE (Sq. mm) 11 kV, 3 core Indoor Terminations
3 x 16 - 50 XSE - 11 Enquire Now
3 x 70 - 95 XSE - 12 Enquire Now
3 x 120 - 185 XSE - 13 Enquire Now
3 x 240 - 300 XSE - 14   Enquire Now
3 x 400 - 500 XSE - 15   Enquire Now
CABLE SIZE (Sq. mm) 11 kV , 3 core Outdoor Terminations
3 x 16 - 50 XSO - 11 Enquire Now
3 x 70 - 95 XSO - 12 Enquire Now
3 x 120 - 185 XSO - 13 Enquire Now
3 x 240 - 300 XSO - 14   Enquire Now
3 x 400 - 500 XSO - 15   Enquire Now
CABLE SIZE (Sq. mm) 22 kV, 3 core Indoor Terminations
3 x 16 - 50 XSE - 21 Enquire Now
3 x 70 - 120 XSE - 22 Enquire Now
3 x 150 - 225 XSE - 23 Enquire Now
3 x 240 - 400 XSE - 24   Enquire Now
3 x 500 XSE - 25   Enquire Now
CABLE SIZE (Sq. mm) 22 kV, 3 core Outdoor Terminations
3 x 16 - 50 XSO - 21 Enquire Now
3 x 70 - 120 XSO - 22 Enquire Now
3 x 150 - 225 XSO - 23 Enquire Now
3 x 240 - 400 XSO - 24   Enquire Now
3 x 500 XSO - 25   Enquire Now
CABLE SIZE (Sq. mm) 33 kV, 3 core Indoor Terminations
3 x 25 - 50 XSE - 31 Enquire Now
3 x 70 - 95 XSE - 32 Enquire Now
3 x 120 - 185 XSE - 33 Enquire Now
3 x 240 - 400 XSE - 34   Enquire Now
CABLE SIZE (Sq. mm) 33 kV, 3 core Outdoor Terminations
3 x 25 - 50 XSO - 31 Enquire Now
3 x 70 - 95 XSO - 32 Enquire Now
3 x 120 - 185 XSO - 33 Enquire Now
3 x 240 - 400 XSO - 34   Enquire Now
