Terminations

Heat Shrink Terminations upto 36 kV for PILC Cables

PSO/E-2236

DENSONS HEAT SHRINKABLE TERMINATIONS UPTO 36 kV For 3 Core XLPE/EPR Insulated Cable

In conformance with IEEE-48, VDE 0278 & IS: 13573.

Enquire Now

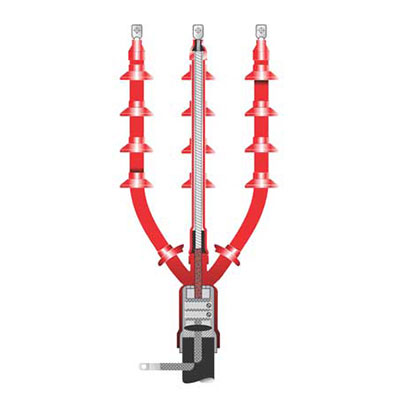

Heat Shrink Terminations upto 36 kV for PILC Cables

In conformance with BS 6480,
IEC 55 (Part I &II), VDE 0255, IS 692

Specifications

TEST	TEST TYPE PSO / E 24-36
A.C. Voltage withstand	Dry : A. C. 75 kV / 1 min. Wet : 75 kV / 1 min.
D.C. Voltage withstand	144 kV for 30 min.
Impulse Voltage withstand	170 kV 10+VE & 10-VE Shots

In conformance with BS 6480, IEC 55 (Part I & II), VDE 0255, IS 692
Type Test Reports Available On Request

Ordering Information

CABLE SIZE (Sq. mm)	FOR 22 kV INDOOR (Kit Code)
3 x 25 - 50	PSE - 21	Enquire Now
3 x 70 - 120	PSE - 22	Enquire Now
3 x 150 - 240	PSE - 23	Enquire Now
3 x 300 - 400	PSE - 24	Enquire Now

CABLE SIZE (Sq. mm)	FOR 22 kV OUTDOOR (Kit Code)
3 x 25 - 50	PSO - 21	Enquire Now
3 x 70 - 120	PSO - 22	Enquire Now
3 x 150 - 240	PSO - 23	Enquire Now
3 x 300 - 400	PSO - 24	Enquire Now

CABLE SIZE (Sq. mm)	FOR 33 kV INDOOR (Kit Code)
3 x 35 - 70	PSE - 31	Enquire Now
3 x 95 - 150	PSE - 32	Enquire Now
3 x 185 - 300	PSE - 33	Enquire Now
3 x 400 - 500	PSE - 34	Enquire Now

CABLE SIZE (Sq. mm)	FOR 33 kV OUTDOOR (Kit Code)
3 x 35 - 70	PSO - 31	Enquire Now
3 x 95 - 150	PSO - 32	Enquire Now
3 x 185 - 300	PSO - 33	Enquire Now
3 x 400 - 500	PSO - 34	Enquire Now

Heat Shrink Terminations
