Straight Through Joint 22 kV (for XLPE Cable)

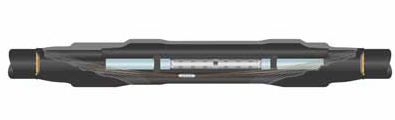

Pre Moulded Straight Through Joint 22 kV (for XLPE Cable)

DPMS/S-22kV

Enquire Now

Features

  • Cold-applied.
  • No Special Tools.
  • Constant Radial Pressure.
  • In Built Stress Control Arrangement
  • Un limited Shelf Life.
  • In compliance with IEC-60502-4.
Pre Moulded Straight Through Joint 22 kV (for XLPE Cable)

Specifications:

Test Item of Pre-moulded joint as per IEC-60502-4 / IS:13573

Testing Items U o/U 12.7/22 kV
A.C. withstand test 58kV, 5min, no flashover
Partial discharge test 22kV<10pc (Max.)
Thermal Cycles (63 cycles) under 95-100° C 32kV
Impulse voltage test 125kV no flashover
A.C. with stand test 32kV, 15 min, no flashover

Order Reference:

Pre Moulded Straight Through Joint 22 kV (for XLPE Cable)

Cable Cross
Section (mm2)ss22 kV
22 kV, Joint, 1 Core 22 kV, Joint, 3 Core
DPMSS 22 - 1 X 50 DPMS 22 - 3 X 50 Enquire Now
DPMSS 22 - 1 X 70 DPMS 22 - 3 X 70 Enquire Now
DPMSS 22 - 1 X 95 DPMS 22 - 3 X 95 Enquire Now
DPMSS 22 - 1 X 120 DPMS 22 - 3 X 120 Enquire Now
DPMSS 22 - 1 X 150 DPMS22 - 3 X 150 Enquire Now
DPMSS 22 - 1 X 185 DPMS 22 - 3 X 185 Enquire Now
DPMSS 22 - 1 X 240 DPMS 22 - 3 X 240 Enquire Now
DPMSS22 - 1 X 300 DPMS 22 - 3 X 300 Enquire Now
DPMSS 22 - 1 X 400 DPMS 22 - 3 X 400 Enquire Now
DPMSS 22 - 1 X 500 DPMS 22 - 3 X 500 Enquire Now
