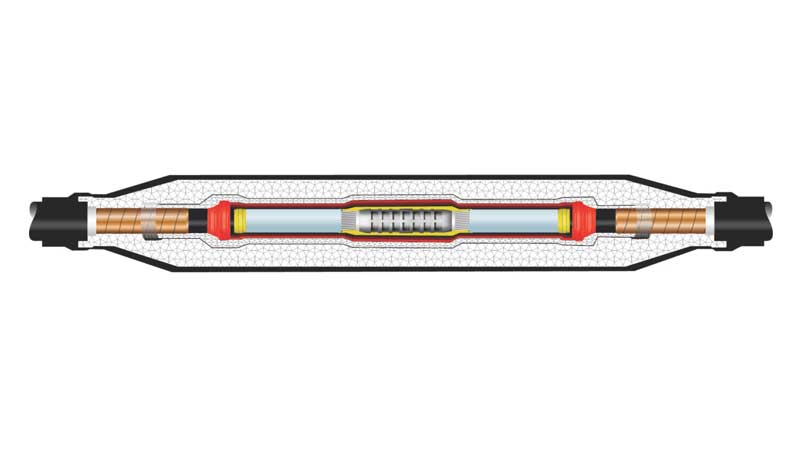

Heat Shrinkable Straight Joint upto 36 kV

XSSS/AB 12-24-36

Densons Heat Shrinkable Straight Joint upto 36 kV (For Aerial Bunched Cable)

Enquire Now

Features

  • In house state-of-art compounding technology to provide maximum protection against tacking, corona discharge   dielectric stress.
  • Minimises jointer’s skills.
  • The Products are carefully selected compositions of raw materials to meet the most stringent demands
  • We also offer tailor-made solutions against specific requirements.
  • Continuous operation temperature-55°C to 120°C.
  • Corrosion resistant and unlimited shelf life.
  • High resistance to impact and abrasion.
  • Electrolytic grade connectors.
Heat Shrinkable Straight Joint upto 36 kV

Dimension Chart

Test Item of Heat Shrinkable Straight Through Joint as per IEC-60502-4 / IS:13573

TESTING ITEMS U °/U 6.35/11 kV 12.7/22 kV 19/33 kV
A/C withstand test 29kV, 5min, no flashover 58kV, 5min, no flashover 86kV, 5min, no flashover
Partial discharge test 11kV<10pc (Max.) 22kV<10pc (Max.) 33kV<10pc (Max.)
Thermal Cycles (63 cycles) under95-100o C 16kV under95-100o C 32kV under95-100o C 48kV
Impulses voltage test 75kV no flashover 125kV no flashover 170kV no flashover
A/C with stand test 16kV, 15 min, no flashover 32kV, 15 min, no flashover 48kV, 15 min, no flashover

Order Reference:

Cable Size (mm2) For 11 kV Straight Through Joints (for AB Cable) (Kit Code)
1 x 16 - 50 XSSS/AB - 11 Enquire Now
1 x 70 - 120 XSSS/AB - 12 Enquire Now
1 x 150 - 225 XSSS/AB - 13 Enquire Now
1 x 240 - 300 XSSS/AB - 14 Enquire Now
1 x 400 - 500 XSSS/AB - 15 Enquire Now
1 x 600 - 1000 XSSS/AB - 16 Enquire Now
Cable Size (mm2) For 22 kV Straight Through Joints (for AB Cable) Kit Code
1 x 25 - 50 XSSS/AB - 21 Enquire Now
1 x 70 - 150 XSSS/AB - 22 Enquire Now
1 x 185 - 240 XSSS/AB - 23 Enquire Now
1 x 300 - 500 XSSS/AB - 24 Enquire Now
1 x 630 - 800 XSSS/AB - 25 Enquire Now
1 x 1000 XSSS/AB - 26 Enquire Now
Cable Size (mm2) For 33 kV Straight Through Joints (for AB Cable) (Kit Code)
1 x 35 - 70 XSSS/AB - 31 Enquire Now
1 x 95 - 150 XSSS/AB - 32 Enquire Now
1 x 185 - 400 XSSS/AB - 33 Enquire Now
1 x 500 - 630 XSSS/AB - 34 Enquire Now
1 x 800 - 1000 XSSS/AB - 35 Enquire Now
