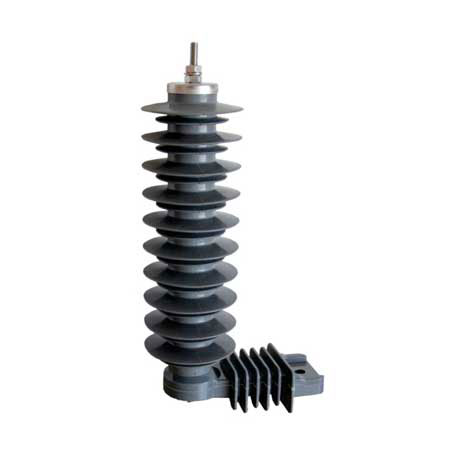

Lightning Arresters / Surge Arresters

Lightning arresters are manufactured using high quality raw material which is used to protect electrical equipment from medium and high voltage.

Enquire Now

Application

A lightning arrester / Surge Arrester is a device used on electrical power systems to protect the insulation of transformer and conductors of the system from the damaging effects of lightning. The typical lightning surge arrester has a high-voltage terminal and a ground terminal. When a lightning surge (or switching surge, which is very similar) travels along the power line to the arrester, the current from the surge is diverted through the arrestor, in to earth.

Construction

Our lightning surge arresters are Gapless metal-oxide type, consist of Zinc-oxide Varistors, FRP Core and Silicone Housing.

Lightning Surge Arresters Accessories

S. No.	ITEM	QTY.
1)	Disconnector	1 No.
2)	Mounting Bracket	1 No.

Technical Parameters

SR.NO	PARAMETERS	11 kV	22 kV	33kV
1	HIGHEST SYSTEM VOLTAGE	12kV(r.m.s)	24kV(r.m.s)	36kV(r.m.s)
2	RATED FREQUENCY	50Hz	50Hz	50Hz
3	NOMINAL DISCHARGE CURRENT	5kA	5kA	5kA
4	MAXIMUM CONTINOUS OPERATING VOLTAGE	7.56 kV(r.m.s)	15 kV(r.m.s)	25kV(r.m.s)
5	PARTIAL DISCHARGE IN PICO COULOMB-pC	LESS THAN 10 pC	LESS THAN 10 pC	LESS THAN 10 pC
6	LIGHTNING IMPULSE PROTECTION LEVEL	75 kVp	150 kVp	170 kVp
7	HIGH CURRENT IMPULSE WITH STAND AT 4/10 μs	65kV	65kV	65kV
8	ONE MINUTE POWER FREQUENCY WITH STAND VOLTAGE OF HOUSING.	28 kV(r.m.s)	50 kV(r.m.s)	70 kV(r.m.s)
