Pre-Moulded Cable Termination

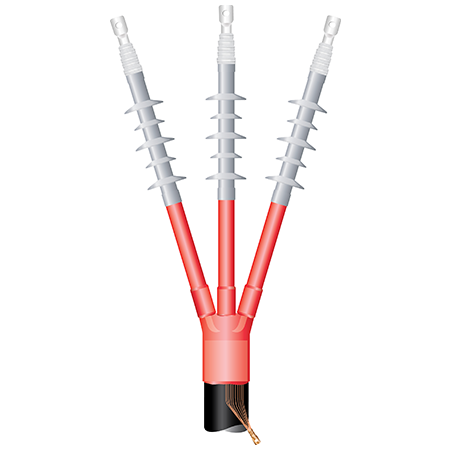

Pre-moulded Indoor & Outdoor Terminations
33 kV (for XLPE Cable)

DPMI/MO-33kV

Enquire Now

Features

  • Cold-applied.
  • No Special Tools.
  • Constant Radial Pressure.
  • In Built Stress Control Arrangement
  • Un limited Shelf Life.
  • In compliance with IEC-60502-4.
Pre-moulded Indoor & Outdoor Terminations <br> 33 kV (for XLPE Cable)

Specifications:

Test Item of Pre-moulded Terminations as per IEC-60502-4 / IS:13573

Testing Items U o/U 19/33 kV
A.C. withstand test 86kV, 5min, no flashover
Partial discharge test 33kV<10pc (Max.)
Thermal Cycles (63 cycles) under 95-100° C 32kV
Impulse voltage test 170kV no flashover
A.C. with stand test 48kV, 15 min, no flashover
Humidity test (Indoor) No flashover, tracking erosion ormechanical damage occured at 300hrs, 16kV
Salt Fog test (Outdoor) No flashover, tracking erosion ormechanical damage occured at 1000hrs, 16kV no flashover, tracking

Order Reference:

For 33 kV Indoor Termination (for XLPE Cable)

Cable Cross
Section (mm2) 33 kV
33 kV, Indoor, 1 Core 33 kV, Indoor, 3 Core
DPMIS 33 - 1 X 50 DPMI 33 - 3 X 50 Enquire Now
DPMIS 33 - 1 X 70 DPMI 33 - 3 X 70 Enquire Now
DPMIS 33 - 1 X 95 DPMI 33 - 3 X 95 Enquire Now
DPMIS 33 - 1 X 120 DPMI 33 - 3 X 120 Enquire Now
DPMIS 33 - 1 X 150 DPMI 33 - 3 X 150 Enquire Now
DPMIS 33 - 1 X 185 DPMI 33 - 3 X 185 Enquire Now
DPMIS 33 - 1 X 240 DPMI 33 - 3 X 240 Enquire Now
DPMIS 33 - 1 X 300 DPMI 33 - 3 X 300 Enquire Now
DPMIS 33 - 1 X 400 DPMI 33 - 3 X 400 Enquire Now
DPMIS 33 - 1 X 500 DPMI 33 - 3 X 500 Enquire Now

Order Reference:

For 33 kV Outdoor Termination (for XLPE Cable)

Cable Cross
Section (mm2) 33 kV
33 kV, Outdoor, 1 Core 33 kV, Outdoor, 3 Core
DPMOS 33 - 1 X 50 DPMO 33 - 3 X 50 Enquire Now
DPMOS 33 - 1 X 70 DPMO 33 - 3 X 70 Enquire Now
DPMOS 33 - 1 X 95 DPMO 33 - 3 X 95 Enquire Now
DPMOS 33 - 1 X 120 DPMO 33 - 3 X 120 Enquire Now
DPMOS 33 - 1 X 150 DPMO 33 - 3 X 150 Enquire Now
DPMOS 33 - 1 X 185 DPMO 33 - 3 X 185 Enquire Now
DPMOS 33 - 1 X 240 DPMO 33 - 3 X 240 Enquire Now
DPMOS 33 - 1 X 300 DPMO 33 - 3 X 300 Enquire Now
DPMOS 33 - 1 X 400 DPMO 33 - 3 X 400 Enquire Now
DPMOS 33 - 1 X 500 DPMO 33 - 3 X 500 Enquire Now
