Pre-Moulded Cable Termination

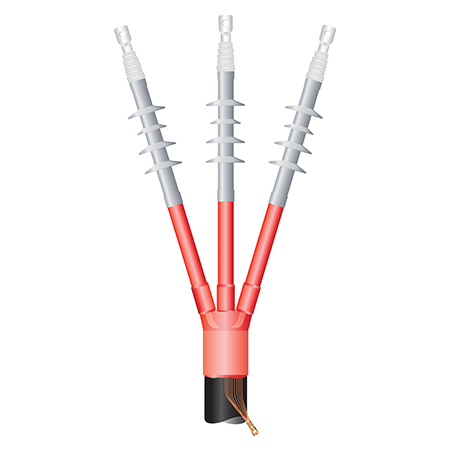

Pre-moulded Indoor & Outdoor Terminations
22 kV (for XLPE Cable)

DPMI/MO-22kV

Enquire Now

Features

  • Cold-applied.
  • No Special Tools.
  • Constant Radial Pressure.
  • In Built Stress Control Arrangement
  • Un limited Shelf Life.
  • In compliance with IEC-60502-4.
Pre-moulded Indoor & Outdoor Terminations 22 kV (for XLPE Cable)

Specifications:

Test Item of Pre-moulded Terminations as per IEC-60502-4 / IS:13573

Testing Items U o/U 12.7/22 kV
A.C. withstand test 58kV, 5min, no flashover
Partial discharge test 22kV<10pc (Max.)
Thermal Cycles (63 cycles) under 95-100° C 32kV
Impulse voltage test 125kV no flashover
A.C. with stand test 32kV, 15 min, no flashover
Humidity test (Indoor) No flashover, tracking erosion ormechanical damage occured at 300hrs, 16kV
Salt Fog test (Outdoor) No flashover, tracking erosion ormechanical damage occured at 1000hrs, 16kV no flashover, tracking

Order Reference:

For 22 kV Indoor Termination (for XLPE Cable)

Cable Cross
Section (mm2) 22 kV
22 kV, Indoor, 1 Core 22 kV, Indoor, 3 Core
DPMIS 22 - 1 X 50 DPMI 22 - 3 X 50 Enquire Now
DPMIS 22 - 1 X 70 DPMI 22 - 3 X 70 Enquire Now
DPMIS 22 - 1 X 95 DPMI 22 - 3 X 95 Enquire Now
DPMIS 22 - 1 X 120 DPMI 22 - 3 X 120 Enquire Now
DPMIS 22 - 1 X 150 DPMI 22 - 3 X 150 Enquire Now
DPMIS 22 - 1 X 185 DPMI 22 - 3 X 185 Enquire Now
DPMIS 22 - 1 X 240 DPMI 22 - 3 X 240 Enquire Now
DPMIS 22 - 1 X 300 DPMI 22 - 3 X 300 Enquire Now
DPMIS 22 - 1 X 400 DPMI 22 - 3 X 400 Enquire Now
DPMIS 22 - 1 X 500 DPMI 22 - 3 X 500 Enquire Now

Order Reference:

For 22 kV Outdoor Termination (for XLPE Cable)

Cable Cross
Section (mm2) 22 kV
22 kV, Outdoor, 1 Core 22 kV, Outdoor, 3 Core
DPMOS 22 - 1 X 50 DPMO 22 - 3 X 50 Enquire Now
DPMOS 22 - 1 X 70 DPMO 22 - 3 X 70 Enquire Now
DPMOS 22 - 1 X 95 DPMO 22 - 3 X 95 Enquire Now
DPMOS 22 - 1 X 120 DPMO 22 - 3 X 120 Enquire Now
DPMOS 22 - 1 X 150 DPMO 22 - 3 X 150 Enquire Now
DPMOS 22 - 1 X 185 DPMO 22 - 3 X 185 Enquire Now
DPMOS 22 - 1 X 240 DPMO 22 - 3 X 240 Enquire Now
DPMOS 22 - 1 X 300 DPMO 22 - 3 X 300 Enquire Now
DPMOS 22 - 1 X 400 DPMO 22 - 3 X 400 Enquire Now
DPMOS 22 - 1 X 500 DPMO 22 - 3 X 500 Enquire Now
