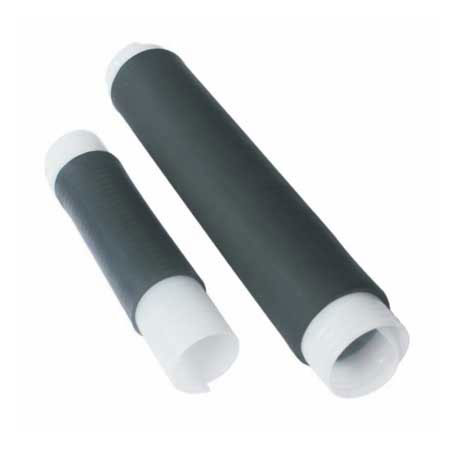

EPDM Cold Shrink Tube

Enquire Now

Features

  • Simple installation, requires only workman’s hands
  • Accommodates a wide range of cable sizes
  • No torches or heat required
  • Good thermal stability and water proof
  • Seals tight, retains its resiliency and pressure even after prolonged years of aging and exposure
  • Excellent wet electrical properties
  • Improved tough rubber formulation to with stand rough backfilling
  • Resists fungus,acids ,alkalis,ozone and ultraviolet light
log

Dimension Chart for Medium Voltage Conductor Cover

Code As Supplied After Recovered
ø D1 (max.) ø D2 (max.) T(min.)
DTWT - 42/19 42 19 8.0
DTWT - 60/29 60 29 8.0
DTWT - 76/38 76 38 8.0
Note: All Dimensions are in mm

Technical Data (Inner stress control layer):

Property Test Method Requirements
Tensile strength ASTM D 2671 10 N/mm2 (min.)
Elongation at break ASTM D 2671 200% (min.)
Water absorption
ISO 62 0.5% (max.)
Volume resistance IEC 93 109 Ω cm (min.)

Technical Data (Medium insulation layer):

Property Test Method Requirements
Tensile strength ASTM D 2671 8 N/mm2 (min.)
Elongation at break ASTM D 2671 200% (min.)
Water absorption
ISO 62 0.5% (max.)
Volume resistance IEC 93 1012 Ω cm (min.)
Dielectric Strength IEC 243 10 kV/mm (min.)

Technical Data (External semi-conducting layer):

Property Test Method Requirements
Tensile strength ASTM D 638 8 N/mm2 (min.)
Elongation at break ASTM D 638 200% (min.)
Water absorption
ISO 62 0.5% (max.)
Volume resistance IEC 93 104Ω cm (min.)
