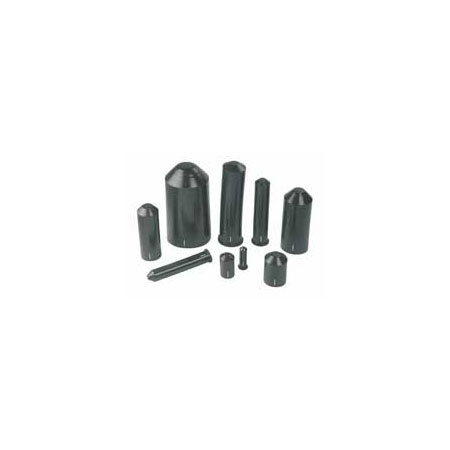

Heat Shrinkable Cable End Caps

Enquire Now

Features

  • Effectively offering protection against oxidation, ozone, UV radiation etc
  • Coated with hot melt adhesive to ensure environment seal
  • Easily to fit over the cable end
  • Protect power cable up to 1000V and telecommunication cable
  • Material: Thermally stabilized cross-linked polyolefin, coated with specially designed hot melt adhesive
  • Minimum fully shrink temperature:120 oC
Heat Shrinkable Cable End Caps

Technical Data

Property Requirements Test Method
Physical
Tensile strength 8N/mm2 (min.) ASTM D 412/ISO 37
Ultimate Elongation 200% (min.) ASTM D 412 / ISO 37
Continuous Operating Temperature -55o C to 120o C IEC 216
Minimum Shrink Temperature 120o C IEC 216
Specific Gravity 1.1 Max. ASTM D 1505 / ISO 1183
Dielectric Strength 10kV/mm min. ASTMD 149 / IEC 243
Volume Resistivity 1012 Ohm Cm. (min.) ASTM 257 / IEC 93
Low Temperature Flexibility No cracking at - 20o C ASTM D 2671
Heat Shock (4 hours at 225o C) No cracking, dripping or flowing
Water Absorption 0.2% max ASTM D 570
Resistance to Fungus Does not support growth ASTM G 21
Copper Corrosion Non Corrosive
Flammability Self extinguishing ASTM D 2671 B

Dimension Chart

Code H L (mm) W (mm) Cable diameter
A(min) B(max)
Standard length end cap
DEC-1 Ø 14/4.5 14 4.5 45 2.0 5-15 Enquire Now
DEC-2 Ø 25/8 25 8 70 2.3 10-20 Enquire Now
DEC-3 Ø 40/15 40 15 85 3.0 18-32 Enquire Now
DEC-4 Ø 55/25 55 25 110 3.3 28-48 Enquire Now
DEC-5 Ø 75/35 75 35 130 3.5 45-70 Enquire Now
DEC-6 Ø 100/50 100 50 155 4.0 55-90 Enquire Now
DEC-7 Ø 120/60 120 60 155 4.0 65-110 Enquire Now
DEC-8 Ø 160/80 160 80 155 4.0 90-150 Enquire Now
Extended length end cap
DEC-1L Ø 14/4.5 14 405 65 2.0 5-12 Enquire Now
DEC-3L Ø 40/15 40 15 90 3.0 18-32 Enquire Now
DEC-4L Ø 55/25 55 25 145 3.3 28-48 Enquire Now
DEC-5L Ø 75/35 75 35 150 3.5 45-70 Enquire Now
DEC-6L Ø 100/45 100 45 165 4.0 50-90 Enquire Now
