Elbow Connectors

DSCS Screened, Separable Connection System 15 kV 630 A

Enquire Now

The Elbow Connectors 25 kV-250, 400 & 630 amps Shielded Connector is shielded and insulated termination, rated 250, 400 & 630 amps upto 24 kV, conected with underground cable ranging from 25 to 400mm2 (conductor cross section). Meets requirements of DIN 47636 standard.

Elbow Connectors 24 kV - 250, 400 & 630 amps Shielded Connectors are molded using high quality peroxide-cured EPDM insulation. It is used to terminate high quality voltage underground cable to switchgear, RMU and 250, 400 & 630 amps junctions equipped with deadbreak bushing. Shielded Fore-Connectors are designed for usage on solid dielectric cable (XLPE or EPR). In order to provide more cable branch circuits, the shielded fore connectors can be connected with the 24 kV - 250, 400 & 630 Shielded type Sub- Connector.

Features

  • Safe to touch.
  • Capacitive test point.
  • Faster installation.
  • Non-corrosive and UV resistant
  • In-built stress control offering high stress control properties
  • Outstanding mechanical, chemical & electrical properties.
  • Unlimited shelf-life.
  • In compliance with IEC-60502-4.

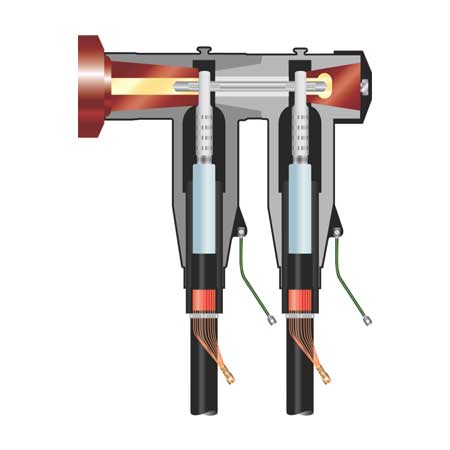

DSCS Screened, Separable Connection System 15 kV 630 A

Dimension Chart for Screened, separable connection system 15 kV 630 A

DSSC Items Parameter
Technical Data Cable 8.7/15kV
  System Voltage 17.5kV
  Rated Current 630A
  Partial Discharge 15kV/ <10pC
  Frequency Withstand Voltage 39.2kV/5min.

Selection Table for T-Connector 15kV 630A with DIN Compression Lugs

Cross
Section
15 kV
Diameter
Core
Insulation
Reference Number
Conductor Material
mm2 min. max. Al Cu
25 16.0 17.8mm DSCS-6101 DSCS-6112 Enquire Now
35 17.0 20.0mm DSCS-6102 DSCS-6113 Enquire Now
50 17.0 20.0mm DSCS-6103 DSCS-6114 Enquire Now
70 20.0 23.1mm DSCS-6104 DSCS-6115 Enquire Now
95 20.0 23.1mm DSCS-6105 DSCS-6116 Enquire Now
120 23.1 26.1mm DSCS-6106 DSCS-6117 Enquire Now
150 23.1 26.1mm DSCS-6107 DSCS-6118 Enquire Now
185 25.8 30.8mm DSCS-6108 DSCS-6119 Enquire Now
240 25.8 30.8mm DSCS-6109 DSCS-6120 Enquire Now
300 30.4 32.3mm DSCS-6110 DSCS-6121 Enquire Now
400 33.0 35.4mm DSCS-6111 DSCS-6122 Enquire Now
500 36.5 37.5mm DSCS-6111A DSCS-6122A Enquire Now
