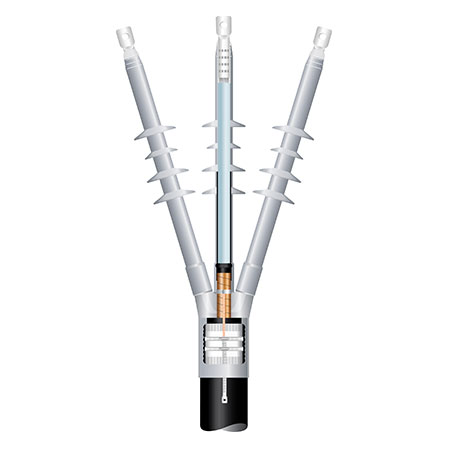

Cold Shrink Indoor & Outdoor Terminations 22 kV (for XLPE Cable)

DCSI/SO-22kV

Features

  • Simple Structure, pre-fabricated, & factory tested.
  • Ready to use and easy to install.
  • Minimises jointer’s skills.
  • Made from LSR, delivering better Electrical and Outdoor Performance.
  • In compliance with IEC-60502-4 / IS:13573.
Cold Shrink Indoor & Outdoor Terminations 11 kV (for XLPE Cable)

Specifications

Test Item of Cold Shrink Straight through Joint & Termination as per IEC-60502-4 / IS:13573

Testing Items U o/U 6.35/22 kV
A.C. withstand test 58kV, 5min, no flashover
Partial discharge test 22kV<10pc (Max.)
Thermal Cycles (63 cycles) under 95-100 ° C 32kV
mpulse voltage test 125kV no flashover
A.C. with stand test 32kV, 15 min, no flashover
Humidity test (Indoor) No flashover, tracking erosion ormechanical damage occured at 300hrs, 16kV
Salt Fog test (Outdoor) No flashover, tracking erosion ormechanical damage occured at 1000hrs, 16kV no flashover, tracking

Order Reference:

For 22 kV Indoor Termination (for XLPE Cable)

22 kV, 1 core
Indoor
Terminations
Cable Cross
Section (mm2)
Type No.
50 - 95 DCSI 22 - 1 X 1 Enquire Now
120 - 150 DCSI 22 - 1 X 2 Enquire Now
185 - 300 DCSI 22 - 1 X 3 Enquire Now
400 - 630 DCSI 22 - 1 X 4 Enquire Now

For 22 kV Indoor Termination (for XLPE Cable)

22 kV, 3 core
Indoor
Terminations
Cable Cross
Section (mm2)
Type No.
50 - 95 DCSI 22 - 3 X 1 Enquire Now
120 - 150 DCSI 22 - 3 X 2 Enquire Now
185 - 300 DCSI 22 - 3 X 3 Enquire Now
400 - 630 DCSI 22 - 3 X 4 Enquire Now

Order Reference:

For 22 kV Outdoor Termination (for XLPE Cable)

22 kV, 1 core
Outdoor
Terminations
Cable Cross
Section (mm2)
Type No.
50 - 95 DCSO 22 - 1 X 1 Enquire Now
120 - 150 DCSO 22 - 1 X 2 Enquire Now
185 - 300 DCSO 22 - 1 X 3 Enquire Now
400 - 630 DCSO 22 - 1 X 4 Enquire Now

For 22 kV Outdoor Termination (for XLPE Cable)

22 kV, 3 core
Outdoor
Terminations
Cable Cross
Section (mm2)
Type No.
50 - 95 DCSO 22 - 3 X 1 Enquire Now
120 - 150 DCSO 22 - 3 X 2 Enquire Now
185 - 300 DCSO 22 - 3 X 3 Enquire Now
400 - 630 DCSO 22 - 3 X 4 Enquire Now
