Heat Shrinkable Cable Repair Sleeve

Enquire Now

Features

  • Application : Insulating, Pressure & humidity-tight sheathings, Suitable for cable joints & terminations
  • Material : Cross linked polyolefin, free of lead & cadmium
  • Colour : Black
  • Medium wall
  • High Tensile strength
  • Resistant to cold flow
  • Very good chemical & electrical properties
  • Non-corrosive
  • UV-resistant
  • Continuous operation temperature: -55 degrees to 125 degrees centigrade
  • In conformance with ESI 09 - 13

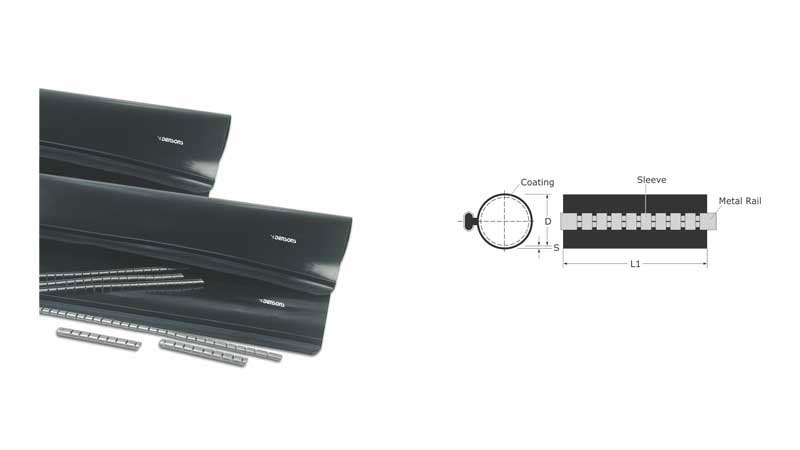

Heat Shrinkable Cable Repair Sleeve

Technical Data

Property Requirements Test Method
Physical
Tensile strength 8 N/mm2 (min) ASTM D 412/ISO 37
Ultimate elongation 200% (min) ASTM D 412 / ISO 37
Continuous Operating Temperature -55o  C to 120o  C IEC 216
Minimum Shrink Temperature 120o  C IEC 216
Specific Gravity 1.1 Max. ASTM D 1505 / ISO 1183
Dielectric Strength 10kV/mm (min.) ASTMD 149 / IEC 243
Volume Resistivity 1012 Ohm Cm. (min.) ASTM 257 / IEC 93
Low Temperature Flexibility No cracking at - 20o  C ASTM D 2671
Heat Shock (4 hours at 225o  C) No cracking, dripping or flowing
Water Absorption 0.2% (max.) ASTM D 570
Resistance to Fungus Does not support growth ASTM G 21
Copper Corrosion Non Corrosive

Dimension Chart

Code L1 Expanded D1 (Min.) Recovered D1 (Max.) W
DRS 42/8
250 mm
500 mm
750 mm
1000 mm
& 1500 mm
42 8 3.0 Enquire Now
DRS 62/22 62 22 3.0 Enquire Now
DRS 92/30 92 30 3.0 Enquire Now
DRS 122/38 122 38 3.0 Enquire Now
DRS 160/55 160 55 3.0 Enquire Now
DRS 210/55 210 55 3.0 Enquire Now
